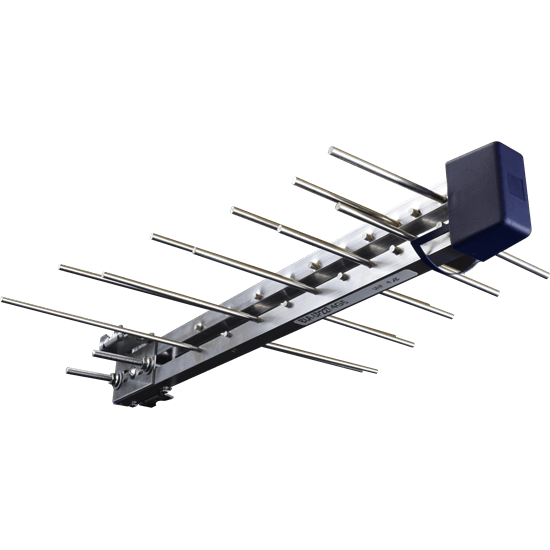

Blake BLA-LP20K Group K Mini Log Aerial
Trade Prices available in quantity - Please call for details
- For Strong Signal Areas
- Can be mounted for horizontal or Vertical Polarisation
- Solid Build quality stronger elements and a rugged construction
Features
- For Strong Signal Areas
- Can be mounted for horizontal or Vertical Polarisation
- Solid Build quality stronger elements and a rugged construction
- Excellent Log Periodic impulse Noise reduction
- Overcomes issues with 4G & 5G , specially developed to reduce bandwidth without using filters
- Moulded F Connector in weather resistant rubber housing
- The F connector can be simply twisted into the required position (Vertical or Horizontal) with no need for disassembly meaning the F connector will always point down
- Very Flat frequency response over ch 21-48
- Universal bracket to fit to pole
Product Channel Bandwidth No. Elements Gain (DBi)
BLA-LP20K 474-690 (ch 21-48) 20 9
BLA-LP28K 470-690 (ch 21-48) 28 10
BLA-LP56K 470-690 (ch 21-48) 56 12.5
Product Channel Bandwidth No. Elements Gain (DBi)
BLA-LP20K 474-690 (ch 21-48) 20 9
BLA-LP28K 470-690 (ch 21-48) 28 10
BLA-LP56K 470-690 (ch 21-48) 56 12.5
Product Code: BLALP22T
Manufacturers Product Code: BLALP20k
