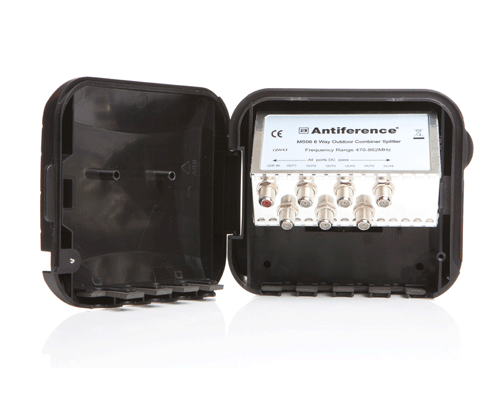

Antiference 6 Way 75 Series Masthead Splitter

£13.50

Manufacturer: Antiference

Product Information

New range of masthead splitter/combiners for TV distribution systems. Featuring a weatherproof housing, fully screened with F connectors & DC pass on all ports. Can be mast or wall mounted.

 MS02MS03MS04MS06MS08
No. of inputs11111
No. of outputs23468
Frequency range470-862MHz470-862MHz470-862MHz470-862MHz470-862MHz
Insertion loss>3.5dB>6dB>8dB>12dB>16dB
DC passAll ports 12v 100mAAll ports  12v 100mAAll ports 12v 100mAAll ports 12v 100mAAll ports 12v 100mA
Isolation ports>20dB>30dB>30dB>30dB>30dB
Weight254g261g269g
Dimensions (LxWxH) mm145x115x65145x115x65145x115x65



Product Code: ANTMS06

Manufacturers Product Code: MS06
